SC(B)10-50~2500/35 three-phase resin-insulated dry transformer
Classification:
Keywords: dry-type transformer series | oil-immersed power transformer series | special transformer series | box-type transformer series
Immediate ConsultationProduct Introduction
The SC(B)10 series 35KV epoxy cast dry transformer with no-load voltage regulation is made from F-grade epoxy resin mixed with fillers. After vacuum film degassing, it is cast in thin layers under vacuum and pressure, with the inner and outer surfaces placed on glass fiber reinforced high and low voltage coils. It is a dry transformer with high mechanical strength, electrical strength, and heat resistance.
Product Features
1. Flame retardant, explosion-proof, pollution-free, maintenance-free, can be installed in a decentralized manner at the load center, reducing investment costs and saving expenses.
2. Low loss, good energy-saving effect, bringing economic benefits in operation.
3. Partial discharge less than 10PC, coils do not absorb moisture or dust, high mechanical strength, good reliability, and cost savings.
4. Short-circuit resistant, good lightning impact resistance.
5. The shell is made of stainless steel, cold plate, and aluminum alloy, with types divided into wind-drawing and heat-dissipating styles. The input and output lines can be top-in top-out, bottom-in top-out, or bottom-in bottom-out.
6. The transformer can be equipped with a temperature control and display system as per user requirements, and can be used in conjunction with the temperature control system.

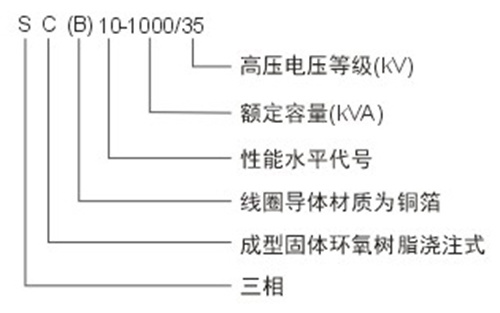

Model Description
Technical Specifications
Voltage Level: 35kV
Capacity Range: 30-2500kVA
Voltage Regulation Method: No-load voltage regulation
Decomposition Range: ±2×2.5% or ±5%
Frequency: 50Hz or 60Hz
Connection Group Mark: Y, yn0, D, yn11
Short Circuit Impedance: Standard Impedance
Maximum Temperature Rise: 100K
Cooling Method: AN or AF
Protection Level: Indoor: IP00, IP20 Outdoor: IP23
Insulation Level: F Grade
Insulation Level: 35kV power frequency withstand voltage 85kV impulse withstand voltage 170kV
Technical Performance Parameters
| Model | Voltage Combination | Connection Group | No-load Loss (W) |
Load Loss (W) |
Load Loss (120℃)(W) |
Short Circuit Impedance (%)) |
||
| High Voltage (kV) |
Tap (kV) |
Low Voltage (kV) |
||||||
| SC10-50 | 35 38.5 |
±2×2.5% ±5% |
0.4 | Dyn11 or Yyn0 |
450 | 1425 | 2.8 | 6 |
| SC10-100 | 630 | 2090 | 2.4 | |||||
| SC10-160 | 790 | 2810 | 1.8 | |||||
| SC10-200 | 880 | 3325 | 1.8 | |||||
| SC10-250 | 990 | 3800 | 1.6 | |||||
| SC10-315 | 1180 | 4515 | 1.6 | |||||
| SC(B)10-400 | 1375 | 5415 | 1.4 | |||||
| SC(B)10-500 | 1620 | 6650 | 1.4 | |||||
| SC(B)10-630 | 1865 | 7695 | 1.2 | |||||
| SC(B)10-800 | 2160 | 9120 | 1.2 | |||||
| SC(B)10-1000 | 2430 | 10450 | 1.0 | |||||
| SC(B)10-1250 | 2835 | 12730 | 0.9 | |||||
| SC(B)10-1600 | 3240 | 15485 | 0.9 | |||||
| SC(B)10-2000 | 3825 | 18240 | 0.9 | |||||
| SC(B)10-2500 | 4455 | 21850 | 0.9 | |||||
Qualification Certificate
Product Qualification
