SC(B)10-30~2500/10 three-phase resin insulated dry transformer
Classification:
Keywords: dry-type transformer series | oil-immersed power transformer series | special transformer series | box-type transformer series
Immediate ConsultationProduct Introduction
The SC(B)10 series epoxy casting non-excitation voltage regulating dry transformer is made of F-class epoxy resin mixture with filler, vacuum film degassed, and cast in thin layers under vacuum and pressure on the inner and outer surfaces placed on glass fiber reinforced high and low voltage coils. It is a dry transformer with high mechanical strength, electrical strength, and heat resistance. It is an excellent product for urban power grid transformation, especially suitable for important places that require fire prevention, explosion-proof, and moisture-proof, such as high-rise buildings, airports, power stations, and commercial centers.
Product Features
1. Flame retardant, explosion-proof, pollution-free, maintenance-free, can be installed in decentralized load centers, reducing investment costs and saving expenses.
2. Low loss, good energy-saving effect, bringing economic benefits in operation.
3. Partial discharge less than 10PC, coils do not absorb moisture or dust, high mechanical strength, good reliability, saving costs.
4. Short-circuit resistant, good lightning impact resistance.
5. The shell is made of stainless steel, cold plate, and aluminum alloy, with types divided into wind-drawing type and heat-dissipating type, with entry and exit lines that can be top-in top-out, bottom-in top-out, or bottom-in bottom-out.
6. The transformer can be equipped with temperature control and temperature display systems as per user requirements, and can be used in conjunction with the temperature control system.

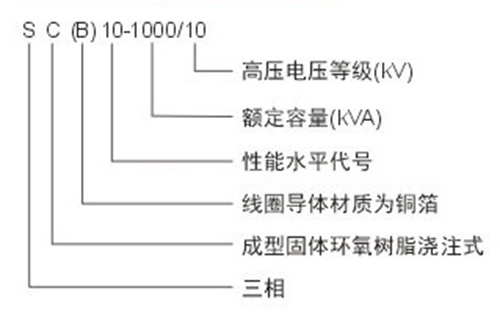

Model Description
Technical Specifications
Voltage Level: 10.35kV
Capacity Range: 30-3150KVA
Voltage Regulation Method: Non-excitation voltage regulation
Decomposition Range: ±2×2.5% or ±5%
Frequency: 50Hz or 60Hz
Connection Group Mark: Y, yn0, D, yn11
Short Circuit Impedance: Standard Impedance
Maximum Temperature Rise: 100K
Cooling Method: AN or AF
Protection Level: Indoor: IP00, IP20 Outdoor: IP23
Insulation Level: F Class
Insulation Level: 10kV power frequency withstand voltage 35/3kV impulse withstand voltage 75kV
Technical Performance Parameters
| Model | Voltage Combination and Tap Range | Connection Group Mark | No-load Loss (W) |
Load Loss (W) |
No-load Current (%)) |
Short Circuit Impedance (%)) |
||
| High Voltage (kV) |
Tap Range (kV) |
Low Voltage (kV) |
||||||
| SC10-30 | 6 6.3 10 10.5 11 |
±2×2.5% ±5% |
0.4 | Dyn11 Yyn0 |
190 | 710 | 2.5 | 4 |
| SC10-50 | 270 | 1000 | 2.2 | |||||
| SC10-80 | 370 | 1380 | 2.1 | |||||
| SC10-100 | 400 | 1570 | 1.9 | |||||
| SC10-125 | 470 | 1850 | 1.7 | |||||
| SC10-160 | 540 | 2130 | 1.7 | |||||
| SC10-200 | 620 | 2530 | 1.5 | |||||
| SC10-250 | 720 | 2760 | 1.5 | |||||
| SC10-315 | 880 | 3470 | 1.3 | |||||
| SC(B)10-400 | 980 | 3990 | 1.3 | |||||
| SC(B)10-500 | 1160 | 4880 | 1.3 | |||||
| SC(B)10-630 | 1340 | 5880 | 1.2 | |||||
| SC(B)10-630 | 1300 | 5960 | 1.2 | 6 | ||||
| SC(B)10-800 | 1520 | 6960 | 1.2 | |||||
| SC(B)10-1000 | 1770 | 8130 | 1 | |||||
| SC(B)10-1250 | 2090 | 9690 | 1 | |||||
| SC(B)10-1600 | 2450 | 11730 | 1 | |||||
| SC(B)10-2000 | 3050 | 14450 | 0.9 | |||||
| SC(B)10-2500 | 3600 | 17170 | 0.9 | |||||
